RFID

Featured Products

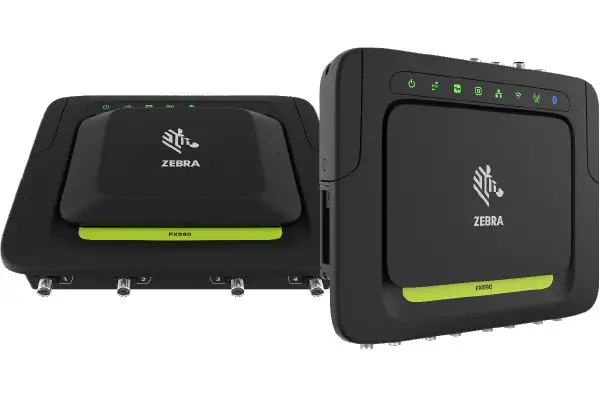

Zebra FXR90 Ultra-Rugged Fixed Readers

Rock-solid reliability against punishing conditions

As more industries choose fixed RFID infrastructure for their asset tracking, you need a reader designed to operate anywhere, even in the harshest environments like those found in transportation/logistics, warehousing and manufacturing enterprises. Readers must withstand moisture and dirt while operating at a wide range of temperatures. Zebra’s FXR90 Ultra-Rugged Fixed RFID Readers are built for extreme conditions—both indoors and outdoors—and sealed to industrial-grade dual IP65 and IP67 ratings for reliable performance anywhere. Their versatile design includes an integrated RFID antenna built in for streamlined deployment, even across the largest facilities. And with built-in wireless technologies, such as Wi-Fi 6, Bluetooth™, 5G, GPS and CBRS, the FXR90 provides unmatched connectivity, even outside the facility’s four walls, to meet the demands of today and the innovations of tomorrow.

CHARACTERISTICS

  • RFID ENGINE Zebra Proprietary Radio Technology
  • MAXIMUM RFID READ RATE 1,300+ tags/sec
  • MAXIMUM RFID READ RANGE (INTEGRATED ANTENNA) 100 (ft); 30.5 (m
  • NOMINAL RFID READ RANGE (INTEGRATED ANTENNA) 55 (ft); 16.7 (m)
  • NOMINAL RFID WRITE/ENCODE RANGE (INTEGRATED ANTENNA) 15 (ft); 4.5 (m)

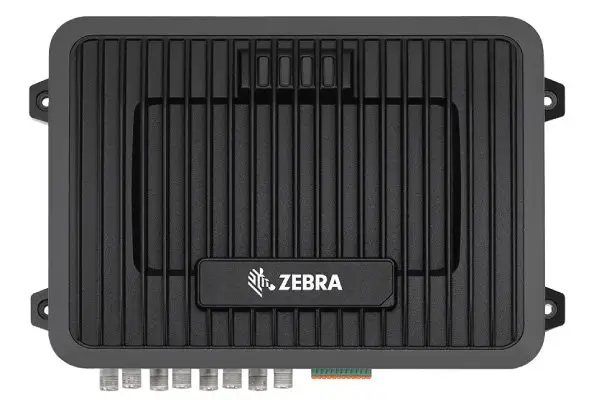

Zebra FX9600 Fixed UHF RFID Reader

Top of the line performance for high-volume rugged environments

To achieve maximum visibility and efficiency in your most rugged environments, your business needs an RFID reader that can keep up with the high volume and wide variety of pallets, cases and tagged items that go in, out and through your warehouse and dock doors each day. The Zebra FX9600 Fixed UHF RFID Reader delivers the performance and features you need to handle it all. With support for Power over Ethernet, IP53 sealing and up to eight RF ports, the FX9600 brings a new level of cost efficiency to passive UHF asset tracking and inventory management, without compromising on performance. Industry-leading read rates, long read ranges and exceptional RF sensitivity ensure you can automate inventory management — from receiving and putaway to picking and shipping — without errors and without bottlenecks. The result? Increased efficiency and accuracy every time your inventory is touched, reduced labor costs and the delivery of the right product to the right customer, on time, every time. When you need industry-best RFID performance, the FX9600 delivers.

CHARACTERISTICS

  • MAX RECEIVE SENSITIVITY -86 dBm monostatic
  • FREQUENCY (UHF BAND) Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz US (only) Reader: 902 - 928 MHz
  • TRANSMIT POWER OUTPUT 0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply
  • COMMUNICATIONS 10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9)
  • GENERAL PURPOSE I/O 4 inputs, 4 outputs, optically isolated (Terminal Block)
  • POWER SUPPLY POE (802.3af), POE+ (802.3at) +24V DC (UL Approved)
  • ANTENNA PORTS FX9600-4: 4 monostatic ports, FX9600-8: 8 monostatic ports
